Controller built-in to display
Low cost alternative to
CU-U VFD modules

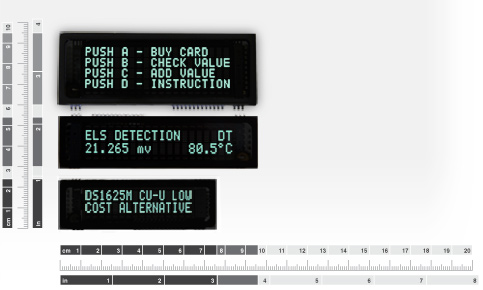

Typical font size
20x4, 20x2, and 16x2

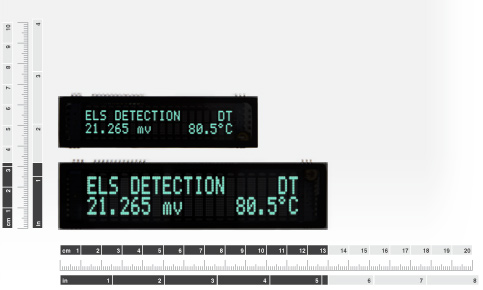

Medium font size
Bottom: DS2029H

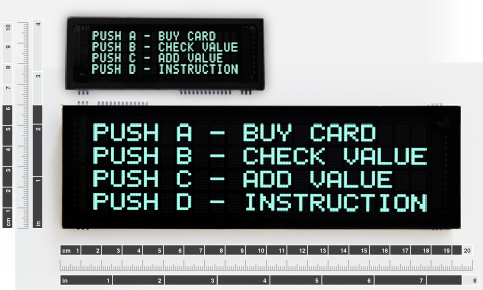

Large font size
Bottom: DS2049F
Low cost alternative to
CU VFD module
- Available in 16x2, 20x2, and 20x4
- Various font sizes available
- Reliability of CU-U Series HD44780 compatible controller.
- Embed directly into your design
- SPI (3 wires)
- Faster display response time and refresh rate
- Long term support
- Fits in 1U rack (1" height)
- Compact in size with best readability
- Easy to read vibrant emissive display
- Blue-green illumination
- Long term support
20x4 character display
DS2045G $22 ►
20x2 character display
DS2025R $19 ►
16x2 character display
DS1625M $18 ►
- Medium character size and compact
- Medium character size for better readability
- Recognize the message at a glance
- Clear and crisp characters to prevent misread
- Operator can view from any angle
20x2 character display
DS2029H $23 ►
20x4 character display
DS2049E $28 ►
- Large character for best readability
- Recognize the message at a glance.
- Clear and crisp characters to prevent misread
- Operator can view from any angle
- Recognize irregularity from distance
20x2 character display
DS202MZ $32.80 ►
20x4 character display
DS2049F $49.50 ►
What is BC-VFD
BC-VFD or built-in controller Vacuum Fluorescent Display has the dependable and reliable CU-U Series HD44780 compatible controller built-in to the display.
What are the benefits?
- Reliability of CU-U Series HD44780 compatible controller.
- Embed directly into your design.
- 3 wires for synchronous serial interface.
BC-VFD Driving References
- Block diagram
- Power supply circuit reference
- Code library for AVR MPU and Arduino
Available in the following pages
NEW Medium character size
NEW Large character size
BC-VFD vs CU-U?
Detail comparison available ►
- BC-VFD has no module, controller is
built-in to the display
- BC-VFD has serial interface
CU-U has serial and parallel
- BC-VFD does not require HD44780 initialization
- BC-VFD require 5V and 36V power supply
- BC-VFD has instruction to select between
English / Japanese and European font table
Long Term Support
Noritake has supported global demands for industrial displays since 1966.
Because of their high quality and life cycles in excess of 10 years,
Noritake has enjoyed a long-standing reputation with Fortune 100 companies.
We offer the assistance of experienced and qualified application engineers nationwide,
working hand-in-hand to solve customer's problems and ensure reliable display solutions.
Factory ISO9001 and ISO14001 Certified
| |
| | |
|
|
